Tp-Link TL-WR820N Wireless N Speed Router

TP-Link TL-WR820N 300 Mbps Wireless N Speed Router

Versatile Multi-Mode Wi-Fi for Everyday Connectivity – Affordable and Flexible

Need a compact, budget-friendly router that adapts to your setup? The TP-Link TL-WR820N 300 Mbps Wireless N Speed Router is a multi-mode powerhouse perfect for small homes, apartments, or remote spots in Bangladesh. If you’re battling weak signals for browsing, emailing, or light streaming, this router delivers reliable 2.4 GHz Wi-Fi coverage up to 1,000 square feet, supporting up to 20 devices. Whether connecting to cable broadband in Dhaka or using WISP mode in rural areas for wireless ISP access, it ensures stable performance without complexity – ideal for students, small offices, or as a range extender.

Compatible with IEEE 802.11n/b/g standards (Wi-Fi 4), Tp-Link TL-WR820N offers 300 Mbps speeds on the 2.4 GHz band, with two 5dBi antennas and 2×2 MIMO for enhanced signal strength and broader coverage. Its four operating modes – Router, Access Point, Range Extender, and WISP – provide flexibility: create a new network, extend an existing one, or bridge to a wireless provider. IPTV support via IGMP Proxy/Snooping, Bridge, and Tag VLAN optimizes streaming, while WPS enables one-touch secure setup.

Key Features:

• 300 Mbps Wireless N Speed: Ideal for daily tasks like web surfing, HD video streaming, online gaming, and file downloads
• Multi-Mode Versatility: Router mode for basic setups, AP for wired-to-wireless conversion, Range Extender to boost signals, and WISP for connecting to wireless ISPs

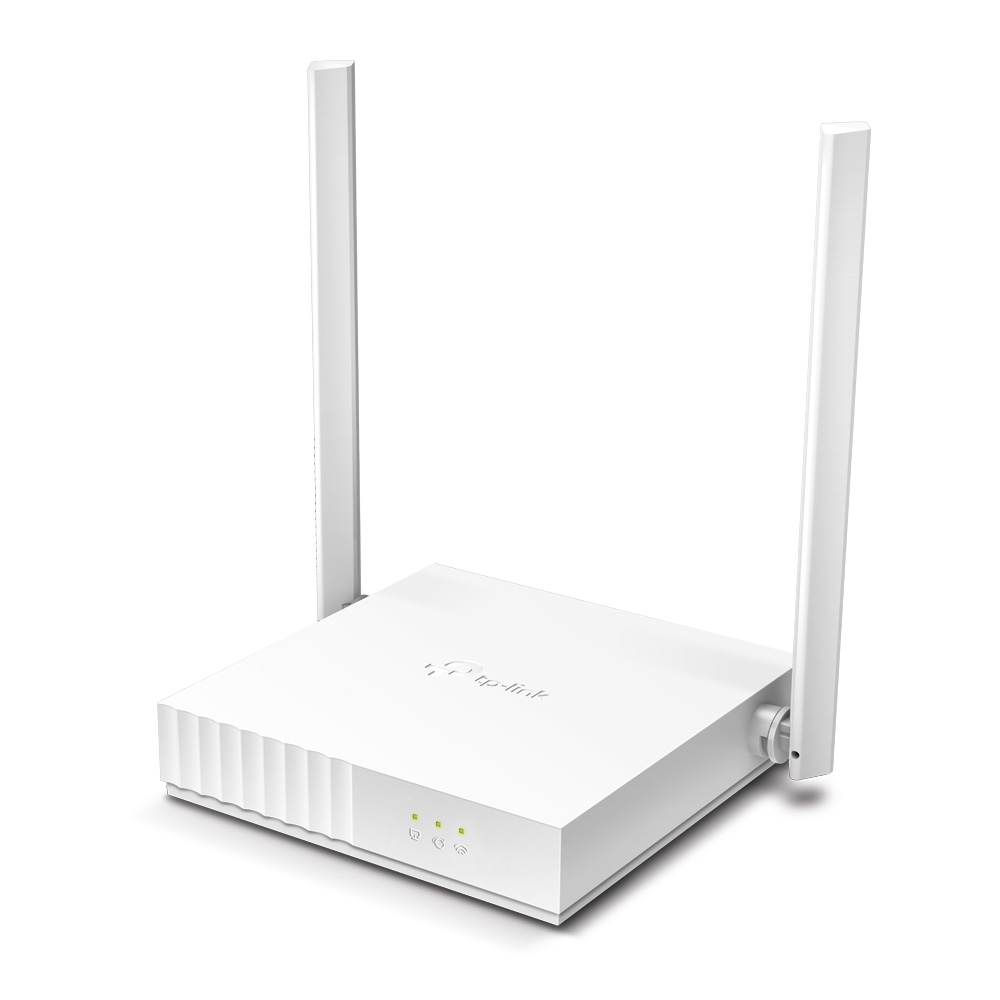

• Enhanced Coverage: Two fixed 5dBi omnidirectional antennas with MIMO technology for stronger signals through walls, covering up to 1,000 sq ft

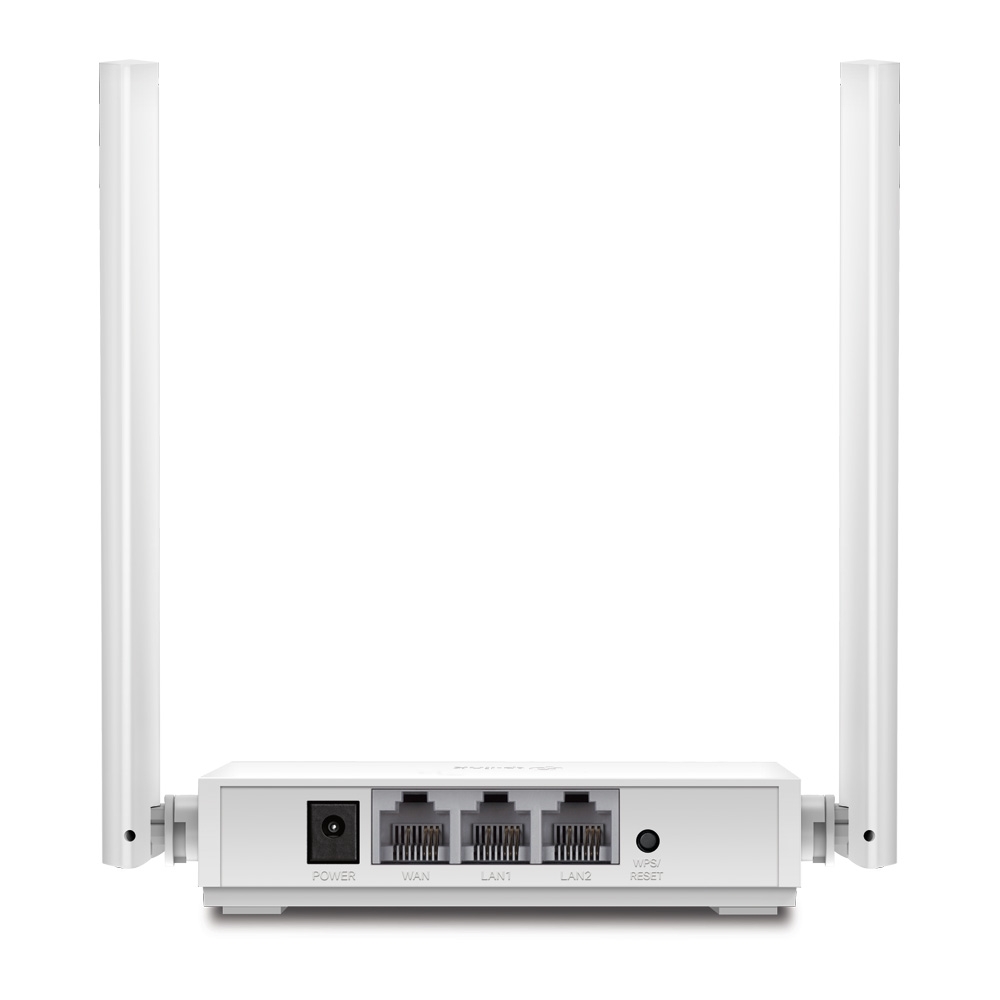

• Fast Ethernet Ports: 1 × 10/100 Mbps WAN + 2 × 10/100 Mbps LAN for reliable wired connections to PCs, printers, or smart TVs
• Security & Controls: WPA2-PSK/WPA encryption, SPI firewall, IP/MAC/URL filtering, DoS protection, parental controls, and guest network for safe sharing
• IPTV Optimization: Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN for smooth multicast streaming
• Easy Setup: One-touch WPS button for quick device pairing; intuitive web interface or Tether app (iOS/Android) for configuration and monitoring
• QoS & Management: Bandwidth control and IPv6 compatibility for prioritizing traffic and future-proofing
• Compact Design: Lightweight and wall-mountable (6.7 × 4.6 × 1.2 inches) with a premium white finish that fits anywhere
• Guest Network: Isolated Wi-Fi for visitors, plus QR code sharing for easy connections

Suited for plans up to 100 Mbps on cable Ethernet, Tp-Link TL-WR820N excels in basic to moderate use, making it a go-to for extending access in areas with limited broadband.

Technical Specifications:

• Wireless Standards: IEEE 802.11n/b/g (2.4 GHz) – Wi-Fi 4
• Wi-Fi Speeds: Up to 300 Mbps (2.4 GHz)
• Ports: 1 × 10/100 Mbps WAN, 2 × 10/100 Mbps LAN
• Antennas: 2 × Fixed 5dBi Omnidirectional External Antennas
• Processor: Single-core CPU (Atheros-based)
• Memory: 32 MB RAM, 4 MB Flash
• Security: WPA2-PSK/WPA, SPI Firewall, Access Control, IP/MAC Binding
• Frequency Range: 2.412 – 2.472 GHz
• Dimensions: 170 × 117 × 30 mm
• Power Supply: 9V/0.6A (universal 100-240V adapter included)

Frequently Asked Questions (FAQs)

1. What makes Tp-Link TL-WR820N versatile for different setups? Its multi-mode operation – Router, Access Point, Range Extender, or WISP – allows it to create, extend, or bridge networks, perfect for homes, offices, or wireless ISP connections.

2. How much area does it cover? Up to 1,000 square feet in open spaces with two 5dBi antennas and MIMO. For larger areas, use Range Extender mode to boost an existing signal.

3. Is setup simple? Yes – press WPS for one-touch pairing, or use the web interface (tplinkwifi.net) or Tether app for a guided wizard in under 10 minutes.

4. Can it handle streaming or gaming? It supports 300 Mbps for HD streaming and light gaming, with IPTV features like IGMP Snooping for optimized multicast traffic.

5. What security options are there? WPA2 encryption, SPI firewall, DoS protection, IP/MAC/URL filtering, and parental controls to secure and manage access.

6. Does it support guest networks? Yes – create an isolated SSID for visitors, with QR code sharing for easy, secure connections without exposing your main network.

7. Is it compatible with IPTV? Absolutely – IGMP Proxy/Snooping, Bridge, and Tag VLAN ensure smooth streaming from set-top boxes or services.

8. Can it work as a range extender? Yes, in Range Extender mode, it connects to your main router wirelessly and rebroadcasts the signal for extended coverage.

9. What internet types does it support? Ethernet WAN for cable broadband; not DSL. WISP mode enables wireless ISP connections for remote areas.

10. What’s in the box?

• Tp-Link TL-WR820N Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Extend your connectivity with the TP-Link TL-WR820N – simple, adaptable, and ready for any mode!
